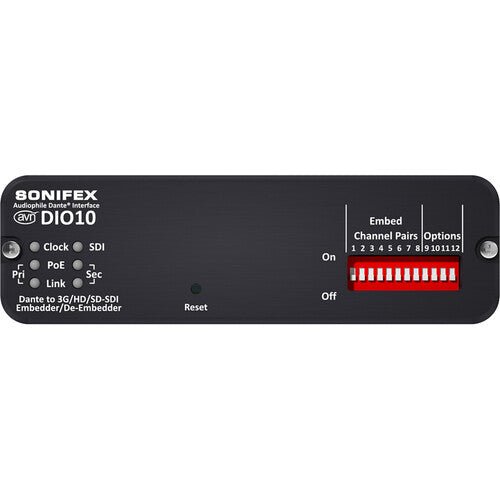

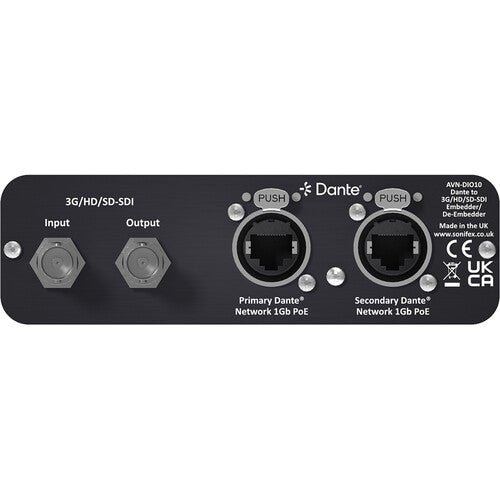

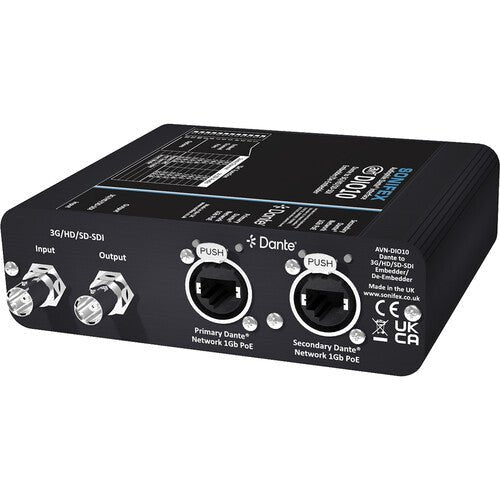

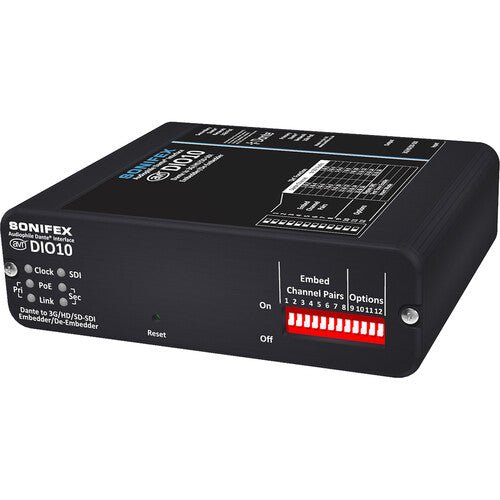

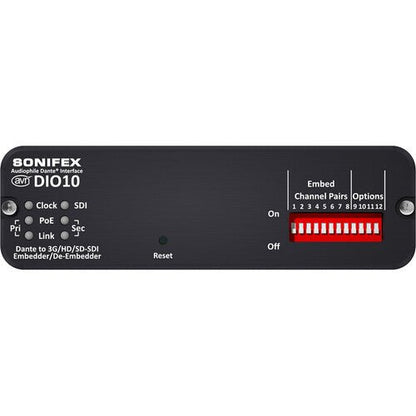

Sonifex AVN-DIO10 Dante 3G/HD/SD-SDI Audio Embedder & De-Embedder

Regular price Rs. 242,995.02
Sale price Rs. 242,995.02 Regular price
Sale Sold out
Shipping calculated at checkout.

Sonifex AVN-DIO10 Dante® to 3G/HD/SD-SDI Embedder/De-Embedder

The Sonifex AVN-DIO10 is a professional audio-over-IP interface designed to connect 3G, HD and SD-SDI video equipment to a Dante® network. It enables simultaneous embedding and de-embedding of up to 16 audio channels in each direction, making it suitable for broadcast studios, live production environments and professional AV installations.

The device extracts embedded audio from an incoming SDI signal and sends it to the Dante network. At the same time, it receives Dante audio channels and embeds them into the outgoing SDI signal. Its flexible operating modes, redundant network connections and Power over Ethernet (PoE) support make it a practical solution for broadcast audio and video integration.

Key Features

  • Simultaneous embedding and de-embedding of up to 16 audio channels.

  • Supports 3G-SDI, HD-SDI and SD-SDI formats.

  • One SDI input and one reclocked SDI output.

  • Dual redundant Dante Primary and Secondary network ports.

  • Neutrik etherCON® network connectors.

  • Supports AES67 and Dante Domain Manager.

  • Power over Ethernet (PoE) with dual power redundancy.

  • Loop-through and Generator operating modes.

  • Selective audio embedding and overwrite options.

  • Sample rate conversion between Dante and SDI audio.

  • Web interface for configuration.

  • Built-in SDI video generator and audio test tones.

Applications

  • Broadcast television and radio studios.

  • Live event and production facilities.

  • SDI camera audio integration with Dante networks.

  • Audio embedding for video distribution.

  • De-embedding SDI audio for Dante-based sound systems.

  • Multi-language audio distribution.

  • Professional AV and broadcast infrastructure.

Technical Specifications

Parameter Specification
Model AVN-DIO10
Brand Sonifex
Product Type Dante SDI Audio Embedder/De-Embedder
SDI Standards 3G-SDI, HD-SDI, SD-SDI
SDI Input 1 × 3G/HD/SD-SDI
SDI Output 1 × Reclocked 3G/HD/SD-SDI
Audio Channels 16-channel embedder and 16-channel de-embedder
SDI Input Impedance 75Ω unbalanced
SDI Output Impedance 75Ω unbalanced
Dante Channels 16 receive / 16 transmit
Dante Sample Rates 44.1, 48, 88.2, 96, 176.4 and 192 kHz
Audio Encoding PCM 16-bit, 24-bit and 32-bit
SDI Embedded Audio 48 kHz and 96 kHz
Network Connectivity 2 × etherCON (RJ45 compatible)
Network Speed 100 Mbps / 1 Gbps
Network Modes Switched or redundant
AES67 Support Yes
Dante Domain Manager Compatible
Power Supply PoE, IEEE 802.3af
Dimensions 14.0 × 13.6 × 4.2 cm
Net Weight Approx. 0.5 kg
Rack Mounting Optional AVN-DIORK rack kit

Reliable Audio Integration for Broadcast and Professional AV

The Sonifex AVN-DIO10 provides a convenient way to integrate SDI video equipment with Dante audio networks. It helps simplify audio routing between broadcast video systems and networked audio infrastructure.
