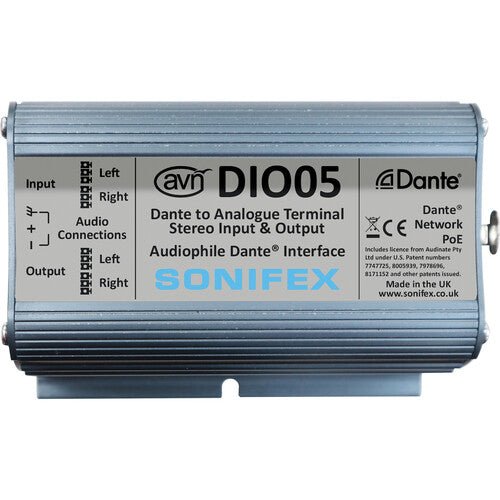

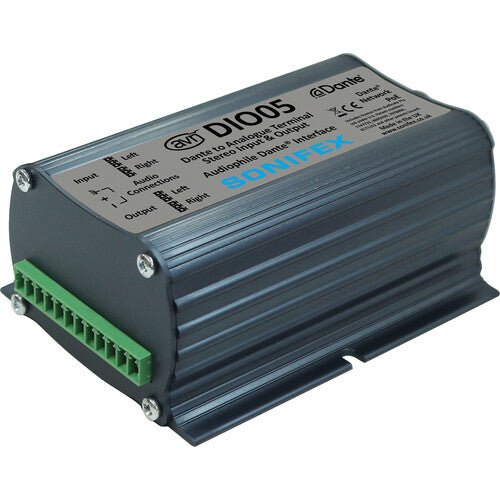

Sonifex AVN-DIO05 Dante® to Analogue Terminal Block Stereo Input & Output
The Sonifex AVN-DIO05 is a professional bidirectional Dante® audio interface designed to connect balanced analogue audio equipment to a Dante Audio-over-IP network. It features stereo analogue inputs and outputs through a 12-way terminal block connector, along with a Neutrik® etherCON® Ethernet connection for network connectivity.
The AVN-DIO05 converts incoming analogue audio into digital Dante audio and converts Dante network audio back into balanced analogue outputs. Its high-quality A/D and D/A conversion circuitry delivers a dynamic range of up to 120 dB, making it suitable for professional broadcast, recording and AV applications.
Key Features
-
Bidirectional Dante® to analogue audio conversion.
-
Balanced stereo analogue input and output.
-
12-way terminal block connector.
-

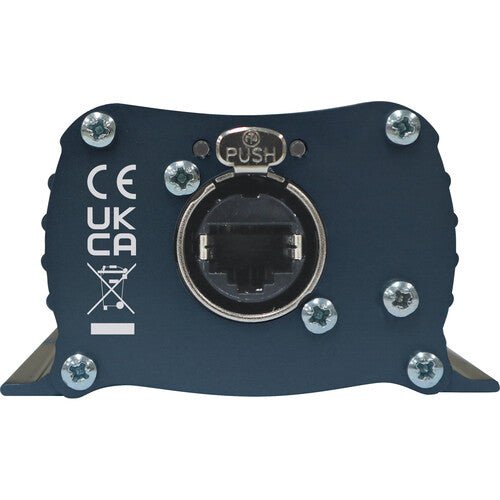

Neutrik® etherCON® Ethernet connection.
-
2-channel Dante input and 2-channel Dante output.
-
High-performance A/D and D/A conversion.
-
Dynamic range of up to 120 dB.
-
Supports AES67 and Dante Domain Manager.
-
Power over Ethernet (PoE) for simplified installation.
-
Configuration through Dante Controller.
-
Rugged aluminium enclosure.
-
Optional AVN-DIORK 1U rack-mounting accessory.
Applications
-
Professional broadcast studios.
-
Recording and production studios.
-
Live sound and event production.
-
Corporate AV installations.
-
Educational institutions.
-
Houses of worship.
-
Hospitality and commercial AV systems.
-
Connecting analogue audio equipment to Dante networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Sonifex |
| Model | AVN-DIO05 |
| Product Type | Dante to Analogue Audio Converter |
| Analogue Inputs | 2 balanced channels (stereo) |
| Analogue Outputs | 2 balanced channels (stereo) |
| Terminal Block | 12-way connector |
| Dante Channels | 2 × 2 (2 transmit / 2 receive) |
| Input Impedance | Greater than 10 kΩ, balanced |
| Output Impedance | Less than 200 Ω, balanced |
| 0 dBFS Line-Up | +18 dBu |
| Input Frequency Response | 20 Hz–20 kHz, +0/-0.2 dB |
| Output Frequency Response | 20 Hz–20 kHz, +0/-0.5 dB |
| Dynamic Range | 120 dB |
| Crosstalk | Less than -110 dB |
| Common Mode Rejection | Greater than 60 dB at 1 kHz |
| Dante Sample Rates | 44.1, 48, 88.2 and 96 kHz |
| Audio Encoding | PCM 16-bit, 24-bit and 32-bit |
| Network Connector | 1 × Neutrik etherCON® |
| AES67 Compatibility | Yes |
| Dante Domain Manager | Compatible |
| Power Supply | PoE, IEEE 802.3af Class 0 |
| Dimensions | 106 × 73 × 43 mm (W × D × H) |
| Net Weight | Approx. 0.2 kg |
| Enclosure | Rugged aluminium |
| Rack Mounting | Optional AVN-DIORK accessory |

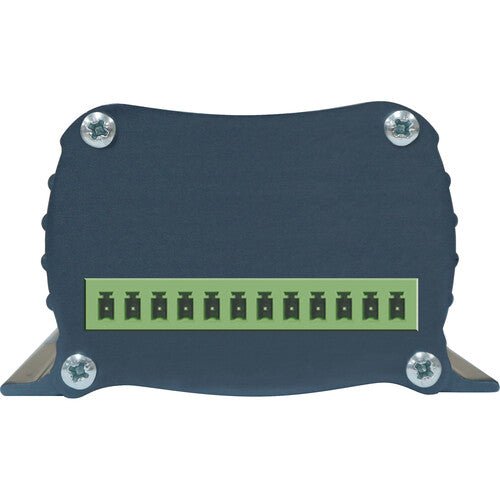

Terminal Block Pin Configuration
| Pin | Function |
|---|---|
| 1 | Chassis Ground |
| 2 | Left Input Phase |
| 3 | Left Input Non-Phase |
| 4 | Chassis Ground |
| 5 | Right Input Phase |
| 6 | Right Input Non-Phase |
| 7 | Chassis Ground |
| 8 | Left Output Phase |
| 9 | Left Output Non-Phase |
| 10 | Chassis Ground |
| 11 | Right Output Phase |
| 12 | Right Output Non-Phase |
Professional Analogue-to-Dante Connectivity
The Sonifex AVN-DIO05 provides a reliable way to integrate traditional analogue audio equipment with modern Dante network infrastructure. Its compact design, balanced stereo connectivity and PoE-powered operation make it an excellent choice for professional audio installations.
