Sonifex AVN-AIO8R 8x8 Dual Dante® Analog Audio Interface with PoE

Regular price Rs. 244,822.03
Sale price Rs. 244,822.03 Regular price
Sale Sold out
Shipping calculated at checkout.

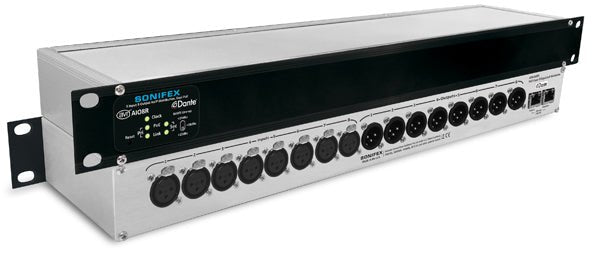

Sonifex AVN-AIO8R – 8 Input, 8 Output Dual Dante® Interface with PoE

The Sonifex AVN-AIO8R is a professional 8-channel input and 8-channel output analog-to-Dante audio interface designed for broadcast, live sound, studio and professional AV installations.

It converts up to eight balanced analog audio inputs into Dante network audio channels and converts eight Dante channels back into balanced analog outputs. This makes it an effective solution for integrating conventional analog audio equipment into modern Audio-over-IP (AoIP) networks.

The AVN-AIO8R features dual Ethernet ports for switched or redundant network operation, helping maintain audio connectivity in professional installations. It supports AES67 and Dante Domain Manager, with Power over Ethernet (PoE) for convenient installation.

Key Features

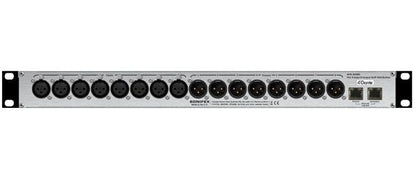

  • 8 balanced analog audio inputs on XLR connectors

  • 8 balanced analog audio outputs on XLR connectors

  • Dual Dante® Ethernet connections

  • Switched and redundant network modes

  • AES67 compatible

  • Dante Domain Manager ready

  • Power over Ethernet (PoE) support

  • Selectable 0dBFS line-up levels: +12dBu, +18dBu and +24dBu

  • Configuration through Dante Controller software

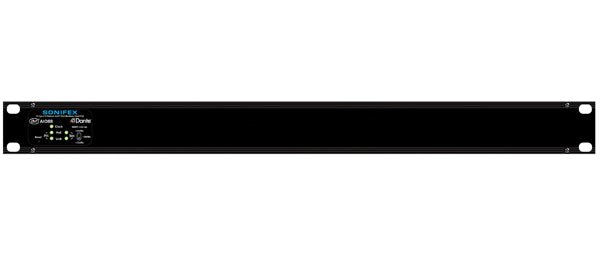

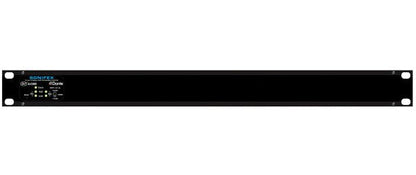

  • Front-panel PoE, Link and Clock status indicators

  • 1U 19-inch rack-mount design

Applications

  • Professional broadcast studios

  • Live sound and event production

  • Corporate AV installations

  • Networked audio distribution

  • Recording and production facilities

  • Audio system integration

  • Analog-to-Dante and Dante-to-analog conversion

Technical Specifications

Parameter Specification
Brand Sonifex
Model AVN-AIO8R
Product Type Dual Dante Analog Audio Interface
Analog Inputs 8 Balanced XLR
Analog Outputs 8 Balanced XLR
Dante Channels 8 Receive / 8 Transmit
Sample Rates 44.1, 48, 88.2, 96, 176.4 and 192 kHz
Bit Depth 16, 24 and 32 bit
Audio Format Linear PCM
Network Connections 2 × RJ45
Network Speed 100 Mbps / 1 Gbps
Network Modes Switched / Redundant
AES67 Support Yes
Dante Domain Manager Compatible
Input Impedance Greater than 20 kΩ balanced
Output Impedance Less than 50 Ω balanced
Selectable Line-up +12 / +18 / +24 dBu
PoE Standard IEEE 802.3af
PoE Class Class 0
Typical PSE Power Usage 7.5 W
Maximum PSE Power Usage 15.4 W
Dimensions 480 × 110 × 43 mm
Rack Format 1U, 19-inch
Net Weight 1.1 kg

Why Choose Sonifex AVN-AIO8R?

The Sonifex AVN-AIO8R provides an efficient way to connect analog audio equipment with Dante-based network infrastructure. Its 8-input and 8-output configuration, dual network connections, AES67 compatibility and PoE operation make it suitable for professional audio installations.

Available at RedTechBox – Shop. Connect. Perform.

Download Datasheet
