Multidyne| 3G/HD/SD-SDI to HDMI Converter w/Multichannel Audio Downmix

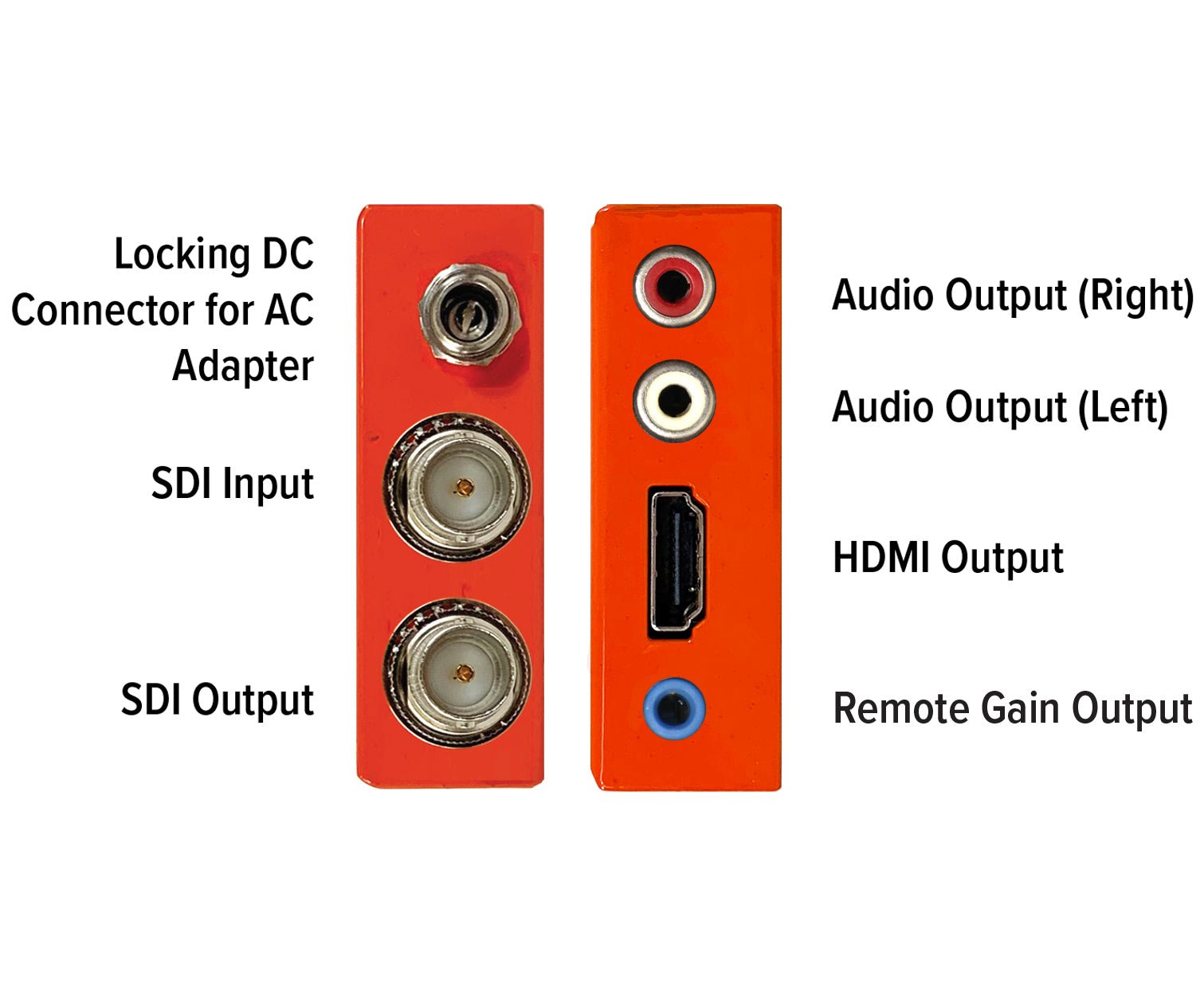

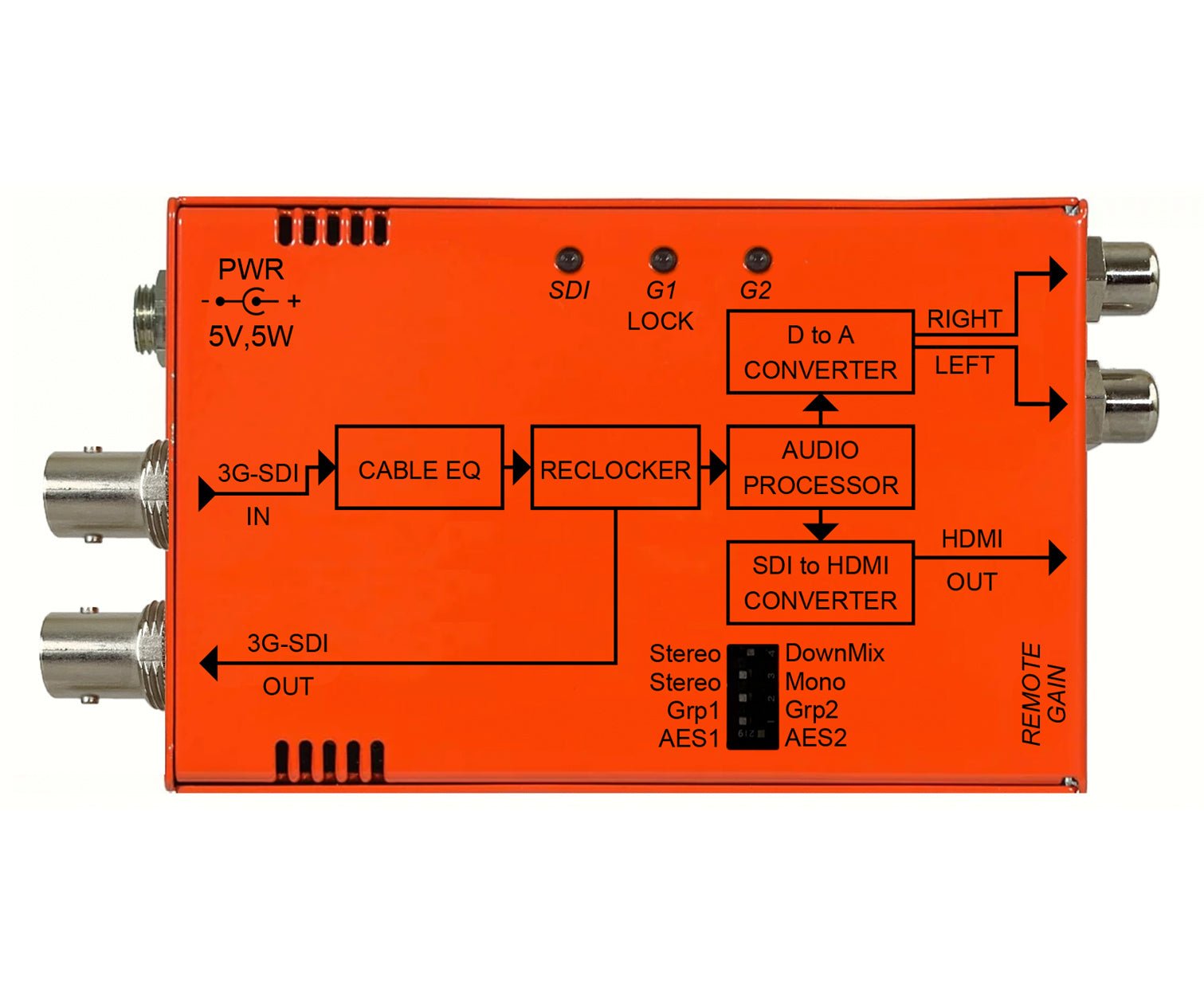

The NBX-3G-HDMI-DMX is a compact broadcast monitoring device that converts an SDI signal to HDMI with additional audio outputs. It supports mono, stereo, and Lt/Rt down-mix modes for 5.1 to stereo conversion. The unit provides one reclocked SDI output, an HDMI output, and two RCA audio outputs, with mode selection via a DIP switch. Front LEDs indicate SDI signal and audio presence in Groups 1 and 2. It is powered by a 5VDC adapter with a locking connector for secure operation.
