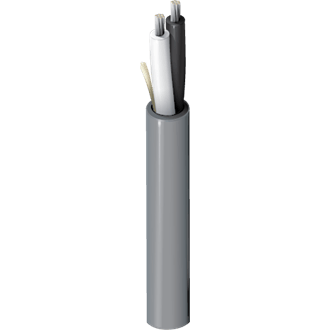

Belden 5200UH 16 AWG 2-Core Tinned Copper Security & Audio Cable
Couldn't load pickup availability
Belden 5200UH 16 AWG 2-Core Security & Commercial Audio Cable
The Belden 5200UH is a professional-grade, 2-core cable designed for security systems, commercial audio installations and low-voltage control applications. It features 16 AWG stranded tinned copper conductors with polypropylene insulation and a durable PVC outer jacket.
Designed for dependable signal transmission, this cable includes a ripcord for easier jacket removal and a riser-rated construction suitable for indoor installations.
Key Features
-
16 AWG Conductors: Two stranded tinned copper conductors.
-
Stranded Construction: 19 × 29 conductor stranding for flexibility.
-
Polypropylene Insulation: Black and red colour-coded conductors.
-
Durable PVC Jacket: Provides protection for indoor installations.
-
Riser Rated: Suitable for CMR-rated building installations.
-
Ripcord: Helps simplify cable stripping and installation.
-
Unshielded Design: Suitable for compatible security and commercial audio applications.
Technical Specifications
-
Brand: Belden
-
Model: 5200UH
-
Number of Conductors: 2
-
Conductor Size: 16 AWG
-
Conductor Material: Tinned Copper (TC)
-
Stranding: 19 × 29
-
Insulation: Polypropylene (PP)
-
Conductor Colours: Black and Red
-
Shielding: Unshielded
-
Outer Jacket: PVC
-
Nominal Outer Diameter: 4.67 mm
-
Voltage Rating: 300 V
-
Temperature Rating: 0°C to +75°C
-
Maximum Current: 6.25 A per conductor at 25°C
-
Riser Rating: CMR
Applications
-
Security and alarm systems
-
Commercial audio installations
-
Control circuits
-
Data and monitoring circuits
-
Notification and initiating circuits
-
Indoor building wiring
Belden 5200UH offers dependable connectivity and durable construction for professional security, commercial audio and control installations.
| Download Datasheet |
- Express Delivery
- 12 Months Warranty
- 7 Days Easy Replace
-
Vendor:
Belden
