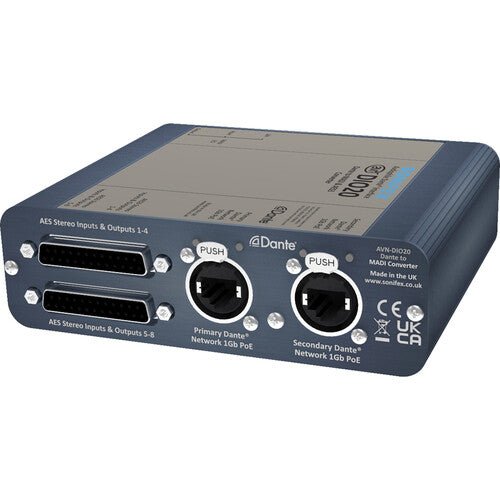

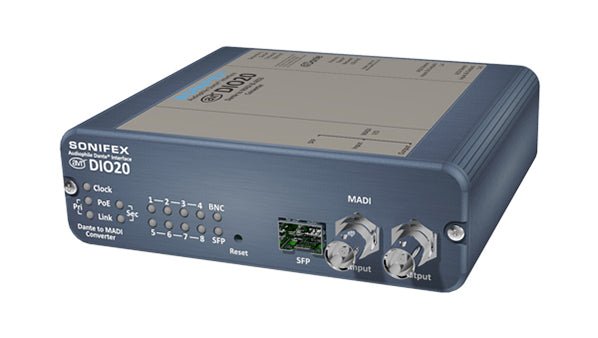

Sonifex AVN-DIO20 64-Channel Dante® to MADI & AES3 Audio I/O Converter

Regular price Rs. 281,364.03
Sale price Rs. 281,364.03 Regular price
Sale Sold out
Shipping calculated at checkout.

Sonifex AVN-DIO20 – Dante® to MADI & AES3 64-Channel Audio I/O Converter

The Sonifex AVN-DIO20 is a professional digital audio interface designed to connect MADI and AES3 equipment with Dante® Audio-over-IP (AoIP) networks. It provides a flexible solution for integrating legacy digital audio equipment into modern networked broadcast, studio and professional AV systems.

The AVN-DIO20 supports up to 64 channels of MADI audio I/O at 44.1 kHz and 48 kHz, with additional AES3 connectivity through eight stereo AES3 inputs and outputs. It features dual redundant Dante network connections, sample rate conversion and Power over Ethernet (PoE) for reliable operation in professional installations.

Key Features

  • Dante® to MADI and AES3 digital audio interface

  • Up to 64-channel MADI input and output

  • 8 stereo AES3 digital audio inputs and outputs

  • Dual redundant Dante® network ports

  • Neutrik etherCON® network connectors

  • AES67 compatible

  • Dante Domain Manager compliant

  • Automatic MADI SFP-to-BNC failover

  • Sample rate conversion between Dante, MADI and AES3

  • Supports Dante sample rates up to 192 kHz

  • Web-based configuration interface

  • Dual PoE power capability with redundancy

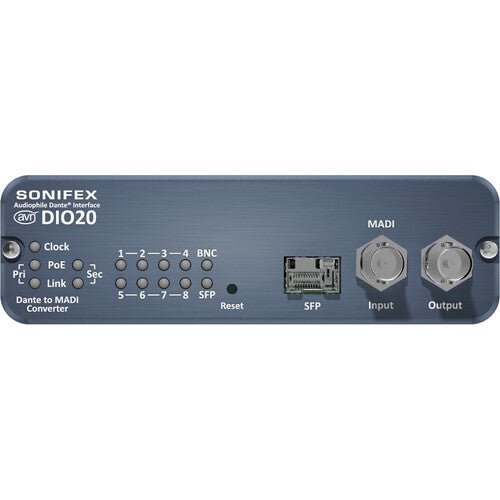

  • Front-panel status LEDs for network, clock, PoE, AES3 lock and MADI activity

Applications

  • Professional broadcast studios

  • Digital audio routing and distribution

  • MADI-based broadcast infrastructure

  • Live sound and event production

  • Recording and production studios

  • Dante network audio installations

  • Professional AV integration

Technical Specifications

Parameter Specification
Brand Sonifex
Model AVN-DIO20
Product Type Dante to MADI / AES3 Audio I/O Converter
MADI Channels Up to 64 channels
MADI Input / Output Coaxial BNC and SFP
MADI Impedance 75 Ohm unbalanced
MADI Sample Rates 48 / 96 / 192 kHz
AES3 Inputs 8 Stereo
AES3 Outputs 8 Stereo
AES3 Impedance 110 Ohm balanced

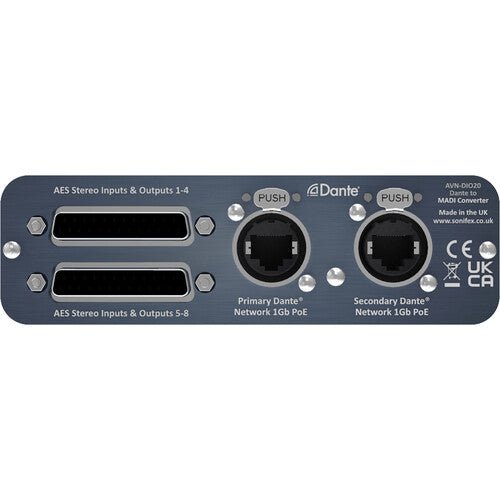

AES3 Connections 2 × 25-way D-sub, AES59 pinout
AES3 Sample Rates 32–192 kHz
Dante Channels 64 Receive / 64 Transmit at 44.1 / 48 kHz
Dante Sample Rates 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Dante Encoding PCM 16 / 24 / 32-bit
Network Connections 2 × Neutrik etherCON®
Network Speed 100 Mbps / 1 Gbps
Network Modes Switched / Redundant
AES67 Support Yes
Dante Domain Manager Compatible
Power Supply PoE, IEEE 802.3af
PoE Redundancy Yes
Dimensions 140 × 136 × 42 mm
Net Weight 0.5 kg

Why Choose Sonifex AVN-DIO20?

The Sonifex AVN-DIO20 provides a convenient way to bridge MADI and AES3 digital audio equipment with Dante network infrastructure. Its high-channel-count capability, dual redundant network connectivity, automatic MADI failover and PoE support make it suitable for demanding professional broadcast and audio installations.
