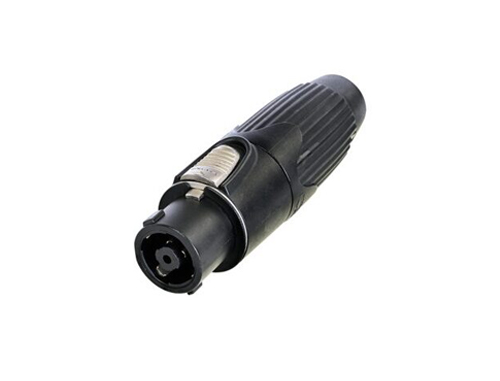

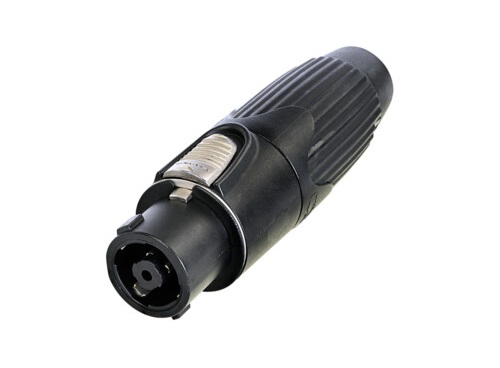

NEUTRIK STXX Series NLT8FXX-BAG
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
Price
₹4,080.44
This feature is only available for variable products.
- This price includes GST and import duties
- This price doesn’t include shipping charges
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NLT8FXX-BAG
MPN:
H-FS45150AK
UPC/HSN:
1234567890
Share
Menu
Features & Benefits
IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Current rating 30 A rms
Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
Precise “Quick Lock” system
Compatible with complete speakON 8 pole product series
Description
Technical Information
| Title | NLT8FXX-BAG | |
| Gender | female | |
| Cable O.D. | 8 – 20 mm | |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) | |
| Lifetime | > 5000 mating cycles | |
| Wiresize | 1.5 mm² – 6 mm² | |
| Wiresize | 10 AWG | |
| Termination | Solder contacts | |
| Locking device | Quick Lock (latch) | |
| Temperature range | -30 °C to +80 °C | |
| Flammability | UL 94 V-0 | |
| Protection class | IP 50 (mated condition) | |
| Solderability | Complies with IEC 68-2-20 |
| Contact resistance | < 2 mΩ | |
| Dielectric strength | 1.5 kVac | |
| Insulation resistance | > 0.1 GΩ (after dampheat) | |
| Rated current per contact | 30 A rms continuous (acc. to IEC 61984) | |
| Rated voltage | 250 V ac | |
| Attention | speakON is NOT to be used as a mains or power supply connector (AC / DC)! | |
| Contact plating | Ag | |
| Contacts | Copper Alloy | |
| Shell | Zinc diecast, KTL coating | |
| Insert | Polyamide (PA 6.6) | |
| Locking element | Zinc diecast | |
| Strain relief | Polyacetal (POM) |
