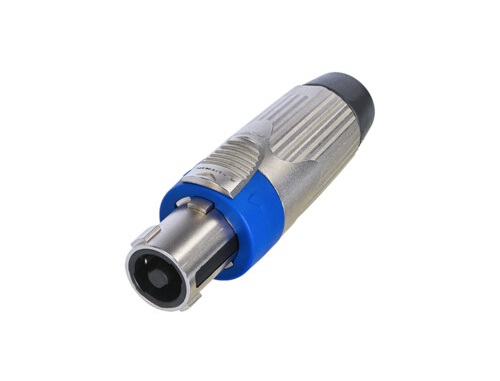

NEUTRIK SpeakON Cable Connectors NLT4FXX
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Price
₹2,116.92
This feature is only available for variable products.
- This price exclusive GST and import duties
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NLT4FXX
MPN:
NLT4FXX
UPC/HSN:
85366990
Share
Menu
Features & Benefits
IEC 61984 certified, IEC 62368-1 compliant
Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
Uses precise “Quick Lock” system
Extra large solder contacts for up to 6 mm² (AWG 10) wires
Weatherproof built-in gasket meets IP 54 protection class in mated condition
Description
Technical Information
| Title | NLT4FXX | |
| Gender | Female | |
| Cable O.D. | 9 – 16 mm | |
| Lifetime | > 5000 mating cycles | |
| Wiresize | 6 mm² | |
| Wiresize | 10 AWG | |
| Termination | Solder contacts | |
| Locking device | Quick Lock (latch) | |
| Temperature range | -30 °C to +80 °C | |
| Flammability | UL 94 V-0 | |
| Protection class | IP 54 (mated condition) | |
| Solderability | Complies with IEC68-2-20 |
| Contact resistance | < 2 mΩ | |
| Dielectric strength | 2.8 kVac | |
| Insulation resistance | >0.1 GΩ (after dampheat) | |
| Rated current per contact | 30 A rms continuous | |
| Rated voltage | 250 V ac | |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! | |
| Contact plating | Ag | |
| Contacts | Copper Alloy | |
| Shell | Zinc diecast, Ni plated | |
| Insert | Polyamide (PA 66) | |
| Locking element | Zinc diecast, Ni plated | |
| Strain relief | Polyacetal (POM) |
