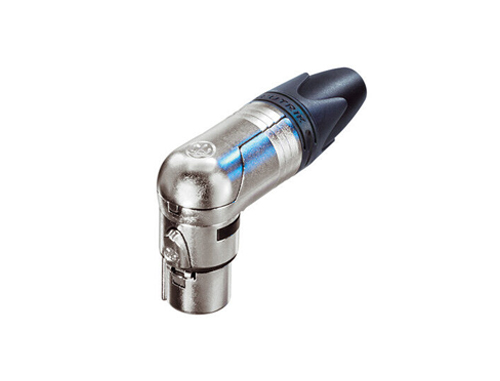

NEUTRIK RX Series NC3FRX
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Price
₹1,663.80
This feature is only available for variable products.
- This price includes GST and import duties
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NC3FRX
MPN:
NC3FRX
UPC/HSN:
85366990
Share
Menu
Features & Benefits
Extra slim right-angle connector
5 selectable cable outlet positions
Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Coloured rings and boots available for coding or identification
Sleek and ergonomic design – valuable and handy
Description
Technical Information
| Title | NC3FRX | |
| Connection Type | XLR | |
| Gender | female | |
| Cable O.D. | 3.5 – 8.0 mm | |
| Insertion force | ≤ 20 N | |
| Withdrawal force | ≤ 20 N | |
| Lifetime | > 1000 mating cycles | |
| Wiresize | max. 2.5 mm² | |
| Wiresize | max. 14 AWG | |
| Wiring | Solder contacts | |
| Flammability | UL 94 V-0 | |
| Standard compliance | IEC 61076-2-103 | |
| Protection class | IP 40 | |
| Solderability | Complies with IEC 68-2-20 | |
| Temperature range | -30 °C to +80 °C |
| Capacitance between contacts | ≤ 4 pF | |
| Contact resistance | ≤ 3 mΩ | |
| Dielectric strength | 1,5 kVdc | |
| Insulation resistance | > 2 GΩ (initial) | |
| Rated current per contact | 16 A | |
| Rated voltage | < 50 V | |
| Boot | Polyurethan | |
| Contact plating | 2 µm Ag | |
| Contacts | Bronze (CuSn8) | |
| Insert | Polyamide (PA66) | |
| Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) | |
| Shell | Zinc diecast (ZnAl4Cu1) | |
| Shell plating | Nickel | |
| Strain relief | Polyacetal (POM) |
