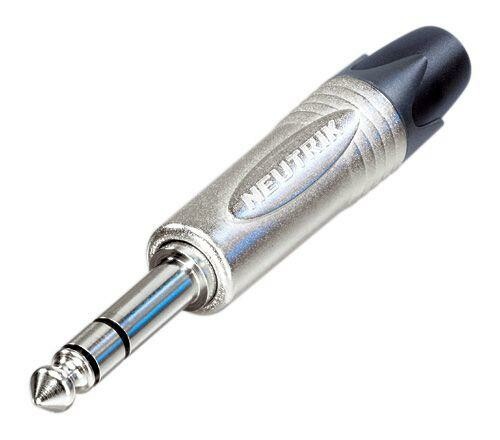

Neutrik PX Series NP3X
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
Price
₹638.38
This feature is only available for variable products.
- This price includes GST and import duties
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NP3X
MPN:
NP3X
UPC/HSN:
85366990
Share
Menu
Features & Benefits
Extra slim 1/4″ plug for highest packing density
Robust diecast shell in stylish design
Proven chuck type strain relief for reliable cable retention
Sleek design for best handling convenience
Precision machined one-piece contacts – avoid hook up of tip contact
Description
Technical Information
| Title | NP3X | |
| Connection Type | Plug | |
| Gender | Male | |
| Cable O.D. | 4 – 7 mm | |
| Lifetime | > 1000 mating cycles | |
| Wiresize | 1 mm² | |
| Wiresize | 18 AWG | |
| Wiring | Solder contacts | |
| Standard compliance | IEC 60603-11 / EIA RS-453 | |
| Solderability | Complies with IEC 68-2-20 | |
| Temperature range | -20 °C to +65 °C |
| Contact resistance | depends on mating connector mΩ | |
| Dielectric strength | 1 kVdc | |
| Insulation resistance | > 2 GΩ (initial) | |
| Rated current per contact | depends on mating connector A | |
| Rated voltage | < 50 V | |
| Bushing | Polyacetal (POM) + PU | |
| Contact plating | 2 µm Ni (Su) | |
| Contacts | Brass (CuZn39Pb3) | |
| Insert | Polyamide (PA 6.6 30 % GR) | |
| Shell | Zinc diecast (ZnAl4Cu1) | |
| Shell plating | Nickel | |
| Strain relief | Polyacetal (POM) |
