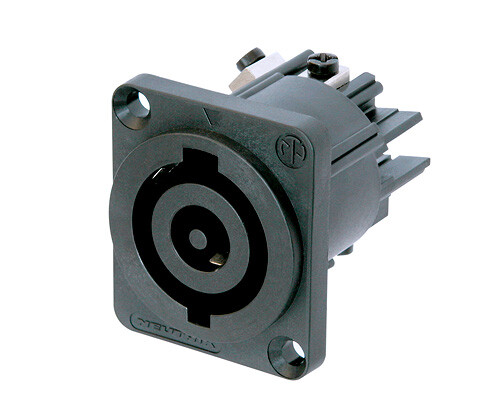

NEUTRIK PowerCON 32 A NAC3MP-HC
The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated).
Price
₹1,995.38
This feature is only available for variable products.
- This price is exclusive of GST and import duties.
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NAC3MP-HC
MPN:
NAC3MP-HC
UPC/HSN:
85366990
Share
Features & Benefits
250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
Premating contact for protective earth
Fast and easy locking system to prevent unintentional disengagement
Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 – 10)
Extremely robust and reliable
VDE, UL, cUL and JET approved
IEC 62368-1 compliant up to 4000 W
Description
It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.
Technical Information
| Title | NAC3MP-HC | |
| Connection Type | powerCON | |
| Gender | male | |
| Lifetime | > 1000 mating cycles | |
| Wiresize | 2.5 – 6 mm² | |
| Wiresize | 14 – 10 AWG | |
| Wiring | screw terminals | |
| Locking device | Quick Lock | |
| Flammability | UL 94 V-0 | |
| Protection class | IP 20 (mated) | |
| Safety Requirements | EN/IEC 61984 | |
| Solderability | Complies with IEC 68-2-20 | |
| Temperature range | -25 °C to +70 °C |
| Contact resistance | ≤ 3 mΩ | |
| Dielectric strength | 4 kVdc / 2.8 kVac | |
| Insulation resistance | > 10 GΩ (initial) | |
| Rating Europe | EN 61984: 32 A 250 V AC | |
| Rating USA | UL 1977: 32 A 250 V AC | |
| Maximal Wattage according to IEC 62368-1 | 4000 W rms | |
| Contact plating | 4 µm Ag | |
| Contacts | Bronze (CuSn0.2) | |
| Locking element | Steel Ck67 | |
| Shell | Polyamide (PA 6.6 25 % GR) |
