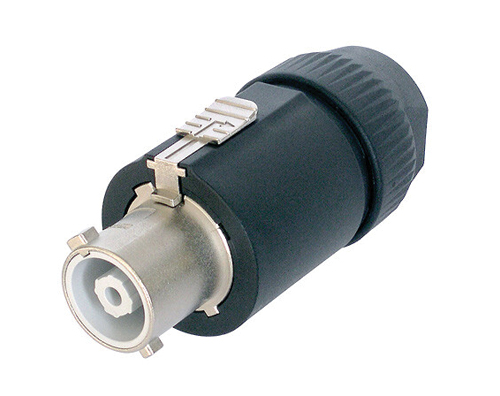

NEUTRIK PowerCON 32 A NAC3FC-HC
The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated).
Price
₹3,694.58
This feature is only available for variable products.
- This price is exclusive of GST and import duties.
- Estimated delivery date will be 6 to 12 days
Brand:
Neutrik
SKU:
NAC3FC-HC
MPN:
NAC3FC-HC
UPC/HSN:
85366990
Share
Menu
Features & Benefits
250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
Premating contact for protective earth
Fast and easy locking system to prevent unintentional disengagement
Cable O.D. Range: 8 – 20 mm
Description
Technical Information
Product
| Property | Value | |
|---|---|---|
| Title | NAC3FC-HC | |
| Connection Type | powerCON | |
| Gender | female | |
| Cable O.D. | 8 – 20 mm | |
| Lifetime | > 1000 mating cycles | |
| Wiresize (mm²) | 2.5 – 6 mm² | |
| Wiresize (AWG) | 14 – 10 AWG | |
| Wiring | screw terminals | |
| Locking device | Quick Lock | |
| Flammability | UL 94 V-0 | |
| Protection class | IP 20 (mated) | |
| Safety Requirements | EN/IEC 61984 |
Electrical
| Property | Value | |
|---|---|---|
| Contact resistance | ≤ 3 mΩ | |
| Dielectric strength | 4 kVdc / 2.8 kVac | |
| Insulation resistance | > 10 GΩ (initial) | |
| Rated current per contact | 32 A (30A for cUL) | |
| Rating Europe | EN 61984: 32 A 250 V AC | |
| Rating USA | UL 1977: 32 A 250 V AC | |
| Contact plating | 4 µm Ag | |
| Contacts | Brass (CuZn39Pb3) | |
| Insert | Polyamide (PA 6.6 25 % GR) | |
| Locking element | Zinc diecast (ZnAl4Cu1) | |
| Shell | Polyamide (PA 6 30 % GR) | |
| Strain relief | Polyacetal (POM) |
