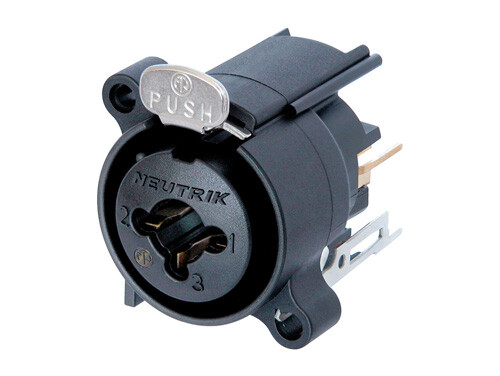

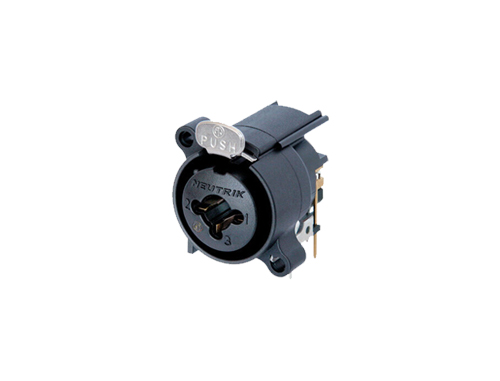

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4″ jack in the smallest available XLR housing.
This feature is only available for variable products.
Combined 3 pole XLR receptacle and 1/4″ TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
Dramatic space saving – 15% over the predecessor Combo
Two connectors in one housing – substantial cost, material and labour saving
Very low conductor capacitance – ideal for digital audio
Front panel cut-out compatible with Neutrik XLR A Series
Branded with unique hologram – guarantees genuine and authentic Neutrik product
| Title | NCJ6FA-V | |
| Connection Type | Combo | |
| Gender | female | |
| Insertion force | ≤ 20 N | |
| Withdrawal force | ≤ 20 N | |
| Lifetime | > 1000 mating cycles | |
| Panel thickness | max. 3 mm (0.12”) | |
| Wiring | vertical PCB mount | |
| Locking device | Latch lock | |
| Mounting direction | Rear mounting | |
| Mounting screw | A-screw | |
| Flammability | UL 94 V-0 | |
| Solderability | Complies with IEC 68-2-20 | |
| Temperature range | -30 °C to +80 °C |
| Contact resistance | < 10 mΩ (XLR) | |
| Contact resistance | < 10 mΩ (jack) | |
| Dielectric strength | 1,5 kVdc | |
| Insulation resistance | > 10 GΩ (initial) | |
| Rated current per contact | 3 A (XLR) | |
| Rated current per contact | 3 A (Jack) | |
| Rated voltage | < 50 V | |
| Contact plating | gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP | |
| Contacts | Bronze (CuSn6) | |
| Insert | Polyamide (PA66) | |
| Locking element | Steel Ck67 |
