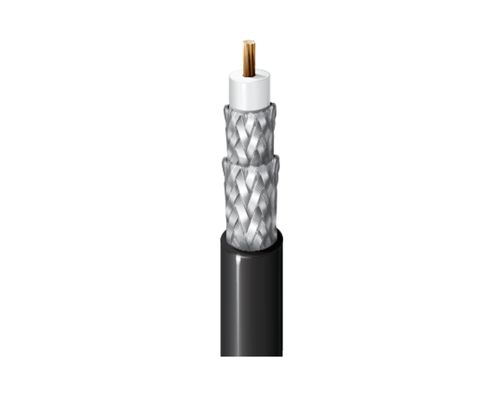

Belden Video Digital Cable- 1505F
75 Ohm SDI Coax, RG-59, 22 AWG (7×29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible.(1 Roll of 305 meter)
Price
Original price was: ₹86,534.00.₹84,334.00Current price is: ₹84,334.00.
This feature is only available for variable products.
- This price is exclusive of GST and import duties.
- Estimated delivery date will be 6 to 12 days
Brand:
Belden
SKU:
MPN:
1505F
UPC/HSN:
85442090
Share
Menu
Features & Benefits
Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Description
75 Ohm SDI Coax, RG-59, 22 AWG (7×29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible
Technical Information
| RG Type | |||
|---|---|---|---|
| 59 | |||
| Conductor | |||
| Size | Stranding | Nom. Diameter | Material |
| 21 AWG | 7×29 | 0.032 in | BC-C – Bare Copper (Compacted) |
| Insulation | |||
| Material | Nom. Insulation Diameter | Color Code | |
| PE – Polyethylene (Foam) | 0.145 in (3.68 mm) | White | |
| Outer Shield | |||
| Layer | Outer Shield Type | Material | Coverage |
| 1 | Braid | Tinned Copper (TC) | 95% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| Outer Jacket | |||
| Material | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.242 in (6.15 mm) | ||
| Overall Cable Diameter (Nominal): 0.242 in (6.15 mm) | |||
