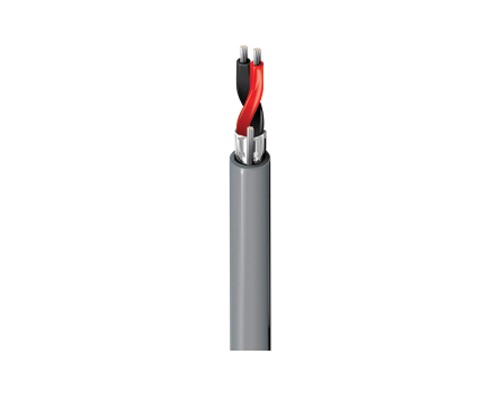

Belden Digital Audio Cable 1800b
Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR. (1 Roll of 305 meter)
Price
Original price was: ₹26,171.00.₹24,172.00Current price is: ₹24,172.00.
This feature is only available for variable products.
- This price includes GST and import duties
- Estimated delivery date will be 6 to 12 days
Brand:
Belden
SKU:
1800b
MPN:
H-FS45150AK
UPC/HSN:
1234567890
Share
Features & Benefits
Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles
Description
Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR. Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR. Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR.
Technical Information
Conductor
| No. of Elements | 1 | |
| Size | 24 AWG | |
| Stranding | 7×32 | |
| Material (Conductor) | TC – Tinned Copper | |
| Shield Type | Tape | |
| Material (Shield) | Bi-Laminate (Alum+Poly) | |
| Coverage | 100% | |
| Drainwire Type | 24 AWG (7×32) TC | |
| Element | Pair(s) | |
| Nom. Conductor DCR | 28.8 Ohm/1000ft | |
| Nom. Capacitance Cond-to-Cond | 12 pF/ft (39 pF/m) | |
| Nom. Capacitance Cond-to-Other | 26 pF/ft (85 pF/m) | |
| Nom. Characteristic Impedance | 110 Ohm | |
| Nom. Velocity of Prop. | 76% | |
| Max. Current | 3.8 Amps per conductor @ 30°C |
Insulation
| Element | Pair(s) | |
|---|---|---|
| Material | PE – Polyethylene (Foam) | |
| Nom. Thickness | 0.022 in (0.56 mm) | |
| Nom. Insulation Diameter | 0.068 in (1.7 mm) | |
| Color Code | Red & Black | |
| Material | PVC – Polyvinyl Chloride | |
| Nom. Thickness | 0.023 in (0.58 mm) | |
| Nom. Diameter | 0.185 in (4.70 mm) | |
| Notes | HDPE | |
| UL Voltage Rating | 300 V (CMR) | |
| UL Temperature | 60°C | |
| Operating | -30°C to +60°C | |
| Stationary Min. | 1.9 in (48 mm) | |
| Installation Min. | 1.9 in (48 mm) | |
| Max. Pull Tension | 16.5 lbs (7.48 kg) | |
| Bulk Cable Weight | 16 lbs/1000ft |
